Aperçu /Produits/Tracteur agricole électrique/Farms XY-2 150m Tractor Mounted Drilling Rig Machine For Water Well Drilling

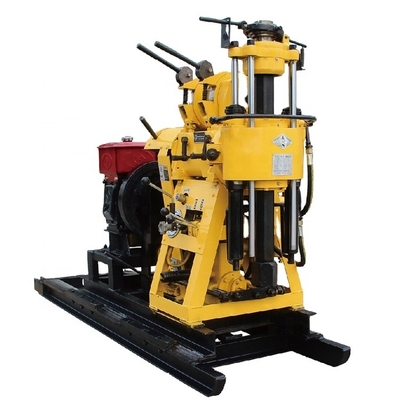

Farms XY-2 150m Tractor Mounted Drilling Rig Machine For Water Well Drilling

1 Unit
MOQ
$6,500.00(>=1 Units)
Prix
Farms XY-2 150m Tractor Mounted Drilling Rig Machine For Water Well Drilling
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Farms, Construction works , Energy & Mining
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Electric
Usage: Water Well
Voltage: 24V
Dimension(L*W*H): 5200*2300*3200mm
Weight: 9500 KG
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
Key Selling Points: Famous brand PLC
Drilling Diameter: 300mm, 50mm, 75mm, 60mm, 100mm
Drilling Depth: Max.100m
keyword: hole drilling rig
Drilling depth: 100m/200m/300m/400m
Local Service Location: Viet Nam, Brazil, Saudi Arabia, Indonesia, India, Russia, Spain, Kenya, Argentina, South Korea, Algeria, Sri Lanka, South Africa, None
After-sales Service Provided: Video technical support, Online support
Certification: ASME,ENERGY SAVING
Informations de base
Certification: ASME,ENERGY SAVING
Conditions de paiement et expédition
Packaging Details: Packing Details:Nude packing/wooden box packing/As requirement
Supply Ability: 100 Unit/Units per Month
Description de produit
Recommend Products
We can supply all series of drilling equipment and drilling tools
Our products use high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection.
Product range covers:Down the hole hammer and bits(dth hammers and dth bits),drill pipes, threaded drilling bits, reverse circulation hammers and bits, shank adapters and coupling sleeves, drilling rig, air compressor and spare parts for drill equipment.

All products are interchangeable with various products manufactured by Atlas Copco.
Products Description
Core Drilling Rig is mainly adapted to suit for engineering exploration, water well and foundation hole drilling, it can also can be used in mineral exploration with diamond bit or tungsten-carbide tipped bit. which is very suitable for Africa soil conditions with softy sandy and less rocky areas, OUR DRILLING RIGS exported HZ core water well drilling rig more than 3500 sets per year.
Model
XY-1
XY-2
XY-3
Drilling depth
100m
200m
300~450m
Open hole dia.
260mm
300mm
400mm
End hole dia
75mm
75mm
75mm
Drill rod dia
42mm
42,50mm
60mm
Drill angle
90°～75°
90°～75°
90°～75°
Machine power
13.2kw
16.2kw
25kw
Weight
500kg
700kg
1500kg
Dimension
1640*1030*1440mm
1730*860*1360mm
8410*2260*2360mm
Spindel speed
142,285,570rpm
115,230,505,1010rpm
30-1050rpm
Spindel stroke
450mm
450mm
450mm
Max feed force
15KN
15KN
20KN
Max lift force
25KN
25KN
30KN
Different Chassis For Choose

2 wheels

4 wheels

crawler monted

Spare Parts
Product packaging
Could be directly placed inside container, or firstly put in wooden box.
Company Profile
Quzhou Jugong Machinery Co.,Ltd.specialized in machine R&D and manufacturing for 10 years. Our product cpvers air compressors,jack hammer,drill rig,drill rig,parts,booster,tunnel shotcreting machine and other machinery hardware product etc.
Our products are popular in more than 50 areas, such as Europe , South America, Southeast Asia, the middle East and etc.
We have advanced new design every year. We are always ready to provide quality products and good after-sales service for every customer. As Chinese professional machinery manufacturer and exporter, we sincerely hope to eastablish business relations with your esteemed corporations.
Certifications
Our Service
FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products??Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.

Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
